All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

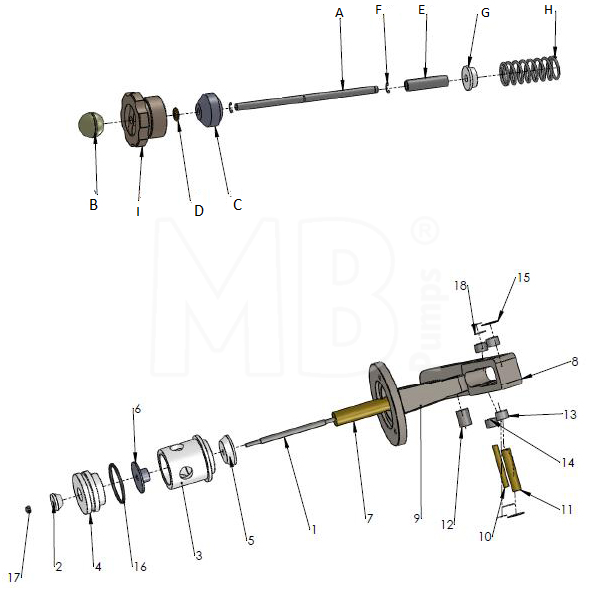

A | MB.01.04.01.A | SPINDEL CONTROL | Per Pump Qty: 1 | Generate Inquiry | ||
B | MB.01.04.01.B | KNOB BALL | Per Pump Qty: 1 | Generate Inquiry | ||
C | MB.01.04.01.C | VALVE CONTROL | Per Pump Qty: 1 | Generate Inquiry | ||
D | MB.01.04.01.D | WASHER M8 BRASS | Per Pump Qty: 1 | Generate Inquiry | ||
E | MB.01.04.01.E | DISTANCE PICES | Per Pump Qty: 1 | Generate Inquiry | ||
F | MB.01.04.01.F | CIRCLIP ExTERNAL 6MM | Per Pump Qty: 2 | Generate Inquiry | ||
G | MB.01.04.01.G | SPRING RETAINER | Per Pump Qty: 1 | Generate Inquiry | ||
H | MB.01.04.01.H | SPRING | Per Pump Qty: 1 | Generate Inquiry | ||
I | MB.01.04.01.I | ADJESTABEL SEAT | Per Pump Qty: 1 | Generate Inquiry | ||
01 | MB.01.06.01.01 | VALVE STEM M4 | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.06.01.02 | PILOT VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.01.03 | VALVE BODY BOTTOM | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.06.01.04 | VALVE BODY TOP | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.06.01.05 | MAIN VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.06.01.06 | DIAPHRAGM | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.06.01.07 | MAIN VALVE ROD | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.06.01.08 | FULCRUM ARM | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.06.01.09 | FULCRUM BRACKET | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.04.01.10 | VALVE SUPPORT | Per Pump Qty: 1 | Generate Inquiry | ||
11 | MB.01.04.01.11 | FULCRUM PIN | Per Pump Qty: 1 | Generate Inquiry | ||
12 | MB.01.04.01.12 | FULCRUM BRACKET BUSH | Per Pump Qty: 1 | Generate Inquiry | ||
13 | MB.01.04.01.13 | FULCRUM ARM BUSH-1 | Per Pump Qty: 2 | Generate Inquiry | ||
14 | MB.01.04.01.14 | FULCRUM ARM BUSH-2 | Per Pump Qty: 2 | Generate Inquiry | ||
15 | MB.01.04.01.15 | WASHER STAR LOCK M10 | Per Pump Qty: 2 | Generate Inquiry | ||
16 | MB.01.06.01.16 | O-RING 45.3 | Per Pump Qty: 2 | Generate Inquiry | ||
17 | MB.01.04.01.17 | SELF LOCK NUT M4 | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.04.01.18 | WASHER STAR LOCK M6 | Per Pump Qty: 2 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

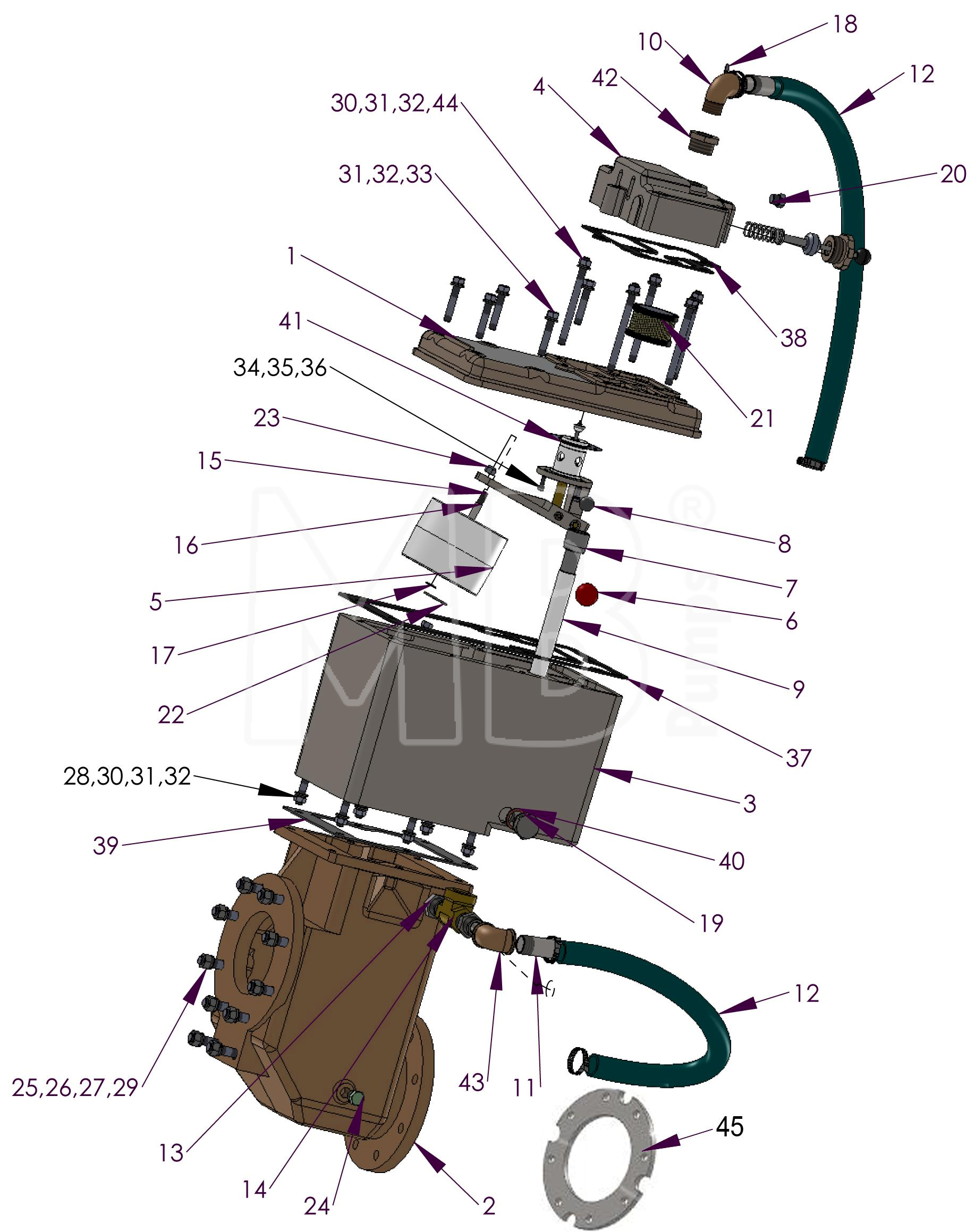

01 | MB.01.06.02.01 | TOP COVER | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.08.02.02 | SUMP TEE | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.02.03 | PRIMING TANK | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.06.02.04 | VALVE COVER | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.06.02.05 | FLOAT | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.04.02.06 | POLLY BALL VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.04.02.07 | VALVE SEAT | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.04.02.08 | BALL VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.04.02.09 | HOUS PVC 0.25M | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.06.02.10 | ELBOW 1x1 BSP MF | Per Pump Qty: 1 | Generate Inquiry | ||
11 | MB.01.06.02.11 | PIPE ADAPTOR | Per Pump Qty: 2 | Generate Inquiry | ||
12 | MB.01.06.02.12 | VACUUME HOSE | Per Pump Qty: 1 | Generate Inquiry | ||
13 | MB.01.06.02.13 | 1" BSP NIPPLE | Per Pump Qty: 2 | Generate Inquiry | ||
14 | MB.01.06.02.14 | NRV 1" | Per Pump Qty: 1 | Generate Inquiry | ||
15 | MB.01.06.02.15 | FLOT ROD | Per Pump Qty: 1 | Generate Inquiry | ||
16 | MB.01.06.02.16 | FLOT ROD SLEEV | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.06.02.17 | WASHER M10 NYLON | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.06.02.18 | SUPER CLAMP | Per Pump Qty: 4 | Generate Inquiry | ||
19 | MB.01.04.02.19 | B.S.P. PLUG 1" | Per Pump Qty: 1 | Generate Inquiry | ||
20 | MB.01.04.02.20 | B.S.P. PLUG 3/8" | Per Pump Qty: 1 | Generate Inquiry | ||
21 | MB.01.06.02.21 | FILTER ELEMENT 3 | Per Pump Qty: 1 | Generate Inquiry | ||
22 | MB.01.06.02.22 | FLOAT DISC | Per Pump Qty: 1 | Generate Inquiry | ||
23 | MB.01.06.02.23 | SELF LOCK NUT M10 | Per Pump Qty: 2 | Generate Inquiry | ||
24 | MB.01.06.02.24 | B.S.P. PLUG GLASS 1/2" | Per Pump Qty: 2 | Generate Inquiry | ||
25 | MB.01.06.02.25 | STUD 16x60 | Per Pump Qty: 10 | Generate Inquiry | ||
26 | MB.01.06.02.26 | SPRING WASHER M16 | Per Pump Qty: 10 | Generate Inquiry | ||
27 | MB.01.06.02.27 | WASHER M16 | Per Pump Qty: 10 | Generate Inquiry | ||
28 | MB.01.04.02.28 | STUD 12x55 | Per Pump Qty: 6 | Generate Inquiry | ||
29 | MB.01.06.02.29 | HEx NUT M16 | Per Pump Qty: 10 | Generate Inquiry | ||
30 | MB.01.06.02.30 | HEx NUT M12 | Per Pump Qty: 16 | Generate Inquiry | ||
31 | MB.01.06.02.31 | WASHER M12 | Per Pump Qty: 16 | Generate Inquiry | ||
32 | MB.01.04.02.32 | SPRING WASHER M12 | Per Pump Qty: 16 | Generate Inquiry | ||
33 | MB.01.06.02.33 | STUD 12x80 | Per Pump Qty: 5 | Generate Inquiry | ||
34 | MB.01.06.02.34 | ALLEN BOLT M6x20 | Per Pump Qty: 3 | Generate Inquiry | ||
35 | MB.01.06.02.35 | SPRING WASHER M6 | Per Pump Qty: 3 | Generate Inquiry | ||
36 | MB.01.06.02.36 | WASHER M6 | Per Pump Qty: 3 | Generate Inquiry | ||
37 | MB.01.06.02.37 | PRIMING TANK JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
38 | MB.01.06.02.38 | JOINT VALVE COVER TO TOP | Per Pump Qty: 1 | Generate Inquiry | ||
39 | MB.01.06.02.39 | JOINT TANK TO SUMP | Per Pump Qty: 1 | Generate Inquiry | ||
40 | MB.01.06.02.40 | COPPER JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
41 | MB.01.06.02.41 | FULCRUM BKT. TO COVER JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
42 | MB.01.06.02.42 | NUT (ELBOW 1x1 BSP) | Per Pump Qty: 1 | Generate Inquiry | ||
43 | MB.01.06.02.43 | 1 IN BPS ELBOW | Per Pump Qty: 1 | Generate Inquiry | ||
44 | MB.01.06.02.44 | STUD 12x160 | Per Pump Qty: 5 | Generate Inquiry | ||
45 | MB.01.08.02.45 | SPACER PLATE | Per Pump Qty: 1 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

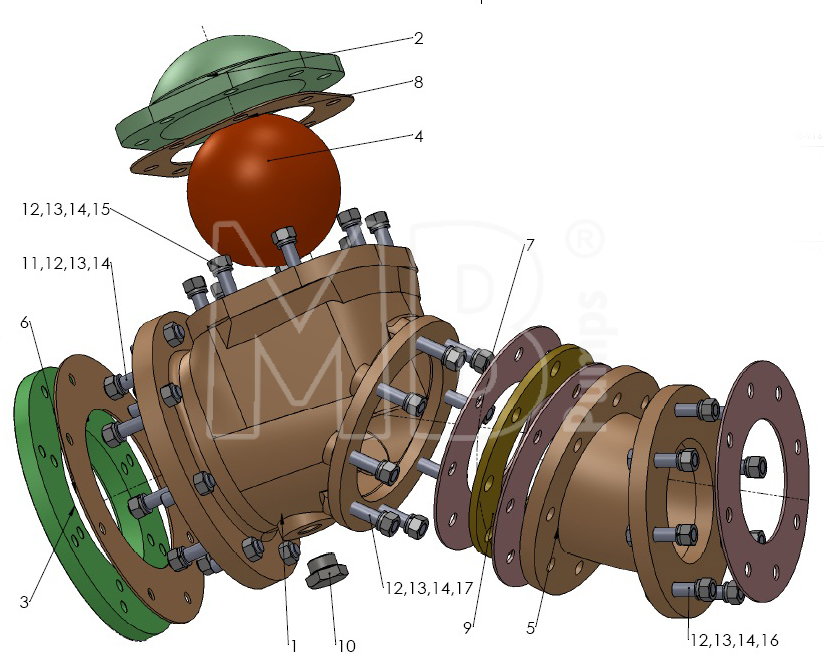

01 | MB.01.06.03.01 | NON RETURN VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.06.03.02 | NRV COVER | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.06.03.04 | BALL REFLUx 180MM | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.06.03.05 | ANGLE FLANGE | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.06.03.06 | NON RETURN VALVE JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.06.03.07 | NRV JOINT SEAT | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.06.03.08 | NRV COVER JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.06.03.09 | NRV VALVE SEAT | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.04.03.10 | B.S.P. PLUG 1" | Per Pump Qty: 1 | Generate Inquiry | ||
11 | MB.01.04.03.11 | STUD 16x65 | Per Pump Qty: 16 | Generate Inquiry | ||
12 | MB.01.06.03.12 | HEX NUT M16 | Per Pump Qty: 40 | Generate Inquiry | ||
13 | MB.01.04.03.13 | SPRING WASHER M16 | Per Pump Qty: 40 | Generate Inquiry | ||
14 | MB.01.04.03.14 | WASHER M16 | Per Pump Qty: 40 | Generate Inquiry | ||
15 | MB.01.04.03.15 | STUD 16x60 | Per Pump Qty: 8 | Generate Inquiry | ||
16 | MB.01.06.03.16 | HEx BOLT M16x70 | Per Pump Qty: 8 | Generate Inquiry | ||
17 | MB.01.06.03.17 | STUD 16x75 | Per Pump Qty: 8 | Generate Inquiry | ||
18 | MB.01.06.03.18 | ANGLE FLANGE JOINT SEAT | Per Pump Qty: 2 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

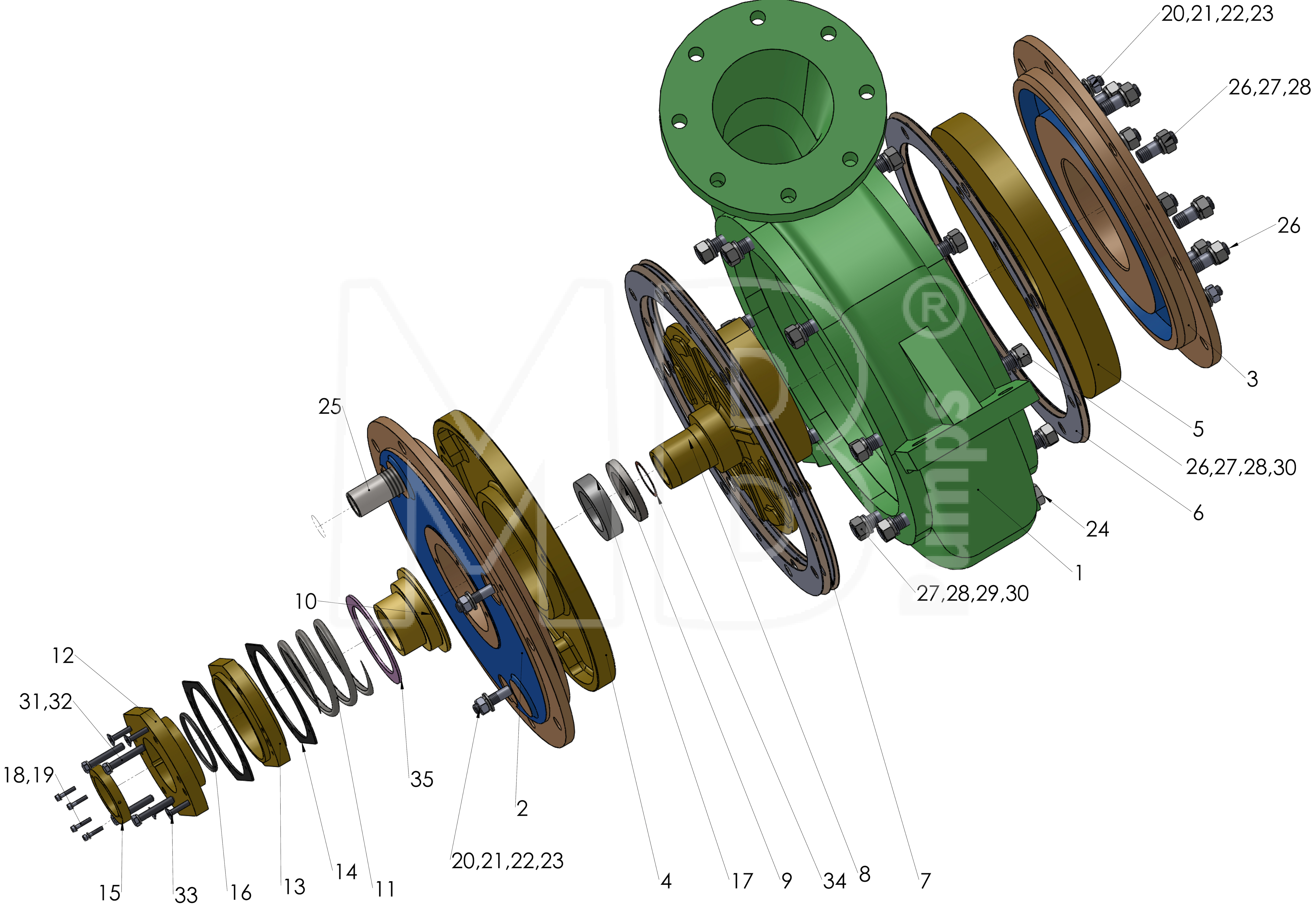

01 | MB.01.06.04.01 | VOLUTE | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.06.04.02 | BACK COVER PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.04.03 | FRONT COVER PLATE JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.06.04.04 | BACK WEAR PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.06.04.05 | FRONT WEAR PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.06.04.06 | SHIM 1.25 MM | Per Pump Qty: 4 | Generate Inquiry | ||
07 | MB.01.06.04.07 | SHIM 1MM | Per Pump Qty: 3 | Generate Inquiry | ||
08 | MB.01.08.04.08 | IMPELLER | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.04.04.09 | S. S RING | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.04.04.10 | PACKING CARRIER | Per Pump Qty: 1 | Generate Inquiry | ||
11 | MB.01.04.04.11 | COMPRESSION SPRING | Per Pump Qty: 1 | Generate Inquiry | ||
12 | MB.01.04.04.12 | SPRING CARRIER | Per Pump Qty: 1 | Generate Inquiry | ||
13 | MB.01.04.04.13 | RETAINING RING | Per Pump Qty: 1 | Generate Inquiry | ||
14 | MB.01.04.04.14 | GASKET BACK COVER | Per Pump Qty: 1 | Generate Inquiry | ||
15 | MB.01.04.04.15 | ASSEMBLY LOCK | Per Pump Qty: 1 | Generate Inquiry | ||
16 | MB.01.04.04.16 | O-RING | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.04.04.17 | GLAND ROPE | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.04.04.18 | ALLEN BOLT M4 | Per Pump Qty: 4 | Generate Inquiry | ||
19 | MB.01.04.04.19 | SPRING WASHER M4 | Per Pump Qty: 4 | Generate Inquiry | ||
20 | MB.01.06.04.20 | STUD 12x65 | Per Pump Qty: 6 | Generate Inquiry | ||
21 | MB.01.06.04.21 | WASHER M12 | Per Pump Qty: 6 | Generate Inquiry | ||
22 | MB.01.06.04.22 | SPRING WASHER M12 | Per Pump Qty: 6 | Generate Inquiry | ||
23 | MB.01.06.04.23 | NUT M12 | Per Pump Qty: 6 | Generate Inquiry | ||
24 | MB.01.06.04.24 | B.S.P. PLUG GLASS 1/2" | Per Pump Qty: 1 | Generate Inquiry | ||
25 | MB.01.04.04.25 | PIPE ADAPTER | Per Pump Qty: 1 | Generate Inquiry | ||
26 | MB.01.06.04.26 | STUD 16x50 | Per Pump Qty: 8 | Generate Inquiry | ||
27 | MB.01.06.04.27 | HEx NUT M16 | Per Pump Qty: 24 | Generate Inquiry | ||
28 | MB.01.06.04.28 | SPRING WASHER M16 | Per Pump Qty: 24 | Generate Inquiry | ||
29 | MB.01.06.04.29 | STUD 16x65 | Per Pump Qty: 16 | Generate Inquiry | ||
30 | MB.01.06.04.30 | WASHER M16 | Per Pump Qty: 16 | Generate Inquiry | ||
31 | MB.01.04.04.31 | HEx BOLT M8x50 | Per Pump Qty: 4 | Generate Inquiry | ||
32 | MB.01.04.04.32 | SPRING WASHER M8 | Per Pump Qty: 4 | Generate Inquiry | ||
33 | MB.01.04.04.33 | CSK BOLT 6x30 | Per Pump Qty: 4 | Generate Inquiry | ||
34 | MB.01.06.04.34 | SHIM COPPER IMPELLER | Per Pump Qty: 1 | Generate Inquiry | ||
35 | MB.01.06.04.35 | SPRING GAITOR | Per Pump Qty: 1 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

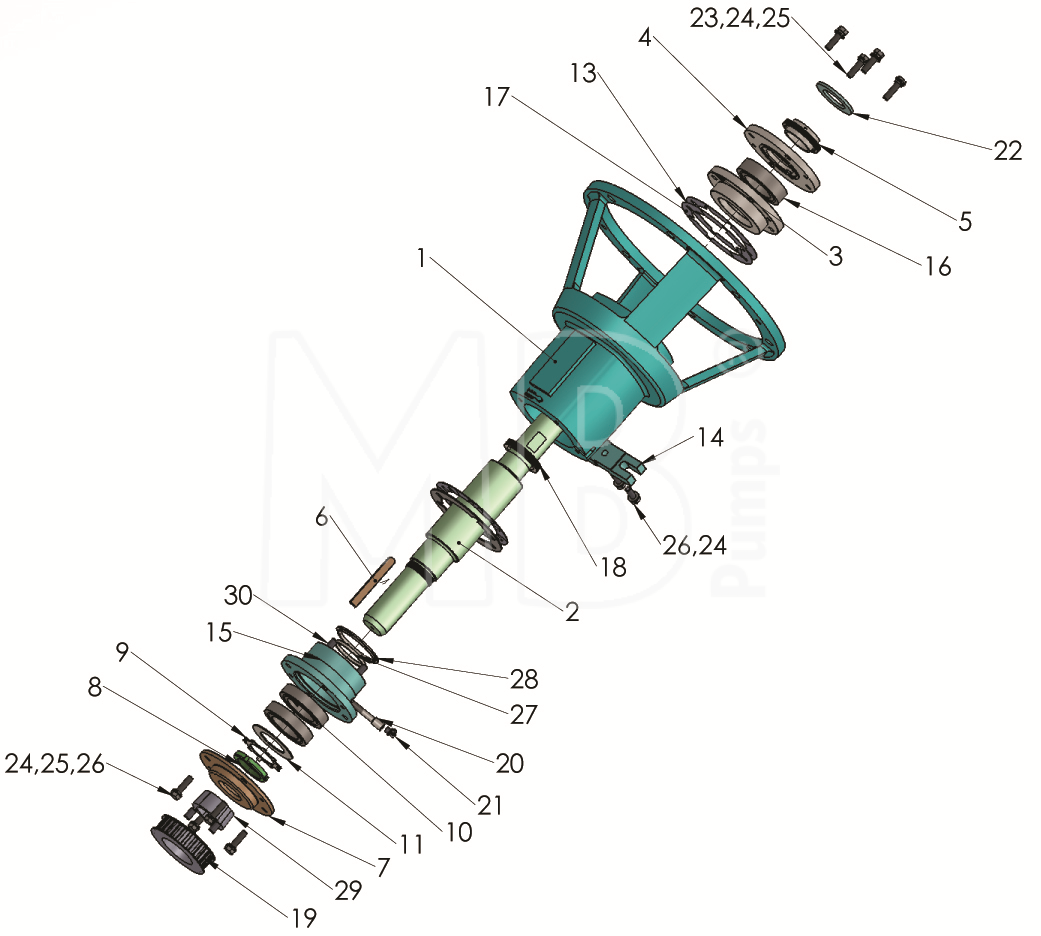

01 | MB.01.06.05.01 | BEARING HOUSING | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.06.05.02 | SHAFT | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.05.03 | BEARING HOUSING- PUMP END | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.06.05.04 | END CAP PUMP END | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.06.05.05 | GREASE RETAINER- PUMP END | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.06.05.06 | KEY PUMP SHAFT | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.06.05.07 | BRG END CAP DRIVE END | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.06.05.08 | LOCK NUT | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.06.05.09 | LOCK WASHER DRIVE | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.06.05.10 | BEARING DRIVE END 508710 | Per Pump Qty: 2 | Generate Inquiry | ||
11 | MB.01.06.05.11 | GREAS RETAINER | Per Pump Qty: 1 | Generate Inquiry | ||
12 | MB.01.06.05.12 | SHIM 0.5 MM | Per Pump Qty: 3 | Generate Inquiry | ||
13 | MB.01.06.05.13 | SHIM 0.25 MM | Per Pump Qty: 1 | Generate Inquiry | ||
14 | MB.01.04.05.14 | BREAKT BEARING HOUSING | Per Pump Qty: 1 | Generate Inquiry | ||
15 | MB.01.06.05.15 | BEARING HOUSING DRIVE END | Per Pump Qty: 1 | Generate Inquiry | ||
16 | MB.01.06.05.16 | BEARING PUMP END 2210 | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.06.05.17 | SHIM 1 MM | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.06.05.18 | BRG SPACER PUMP END | Per Pump Qty: 1 | Generate Inquiry | ||
19 | MB.01.06.05.19 | TIMING PULLY | Per Pump Qty: 1 | Generate Inquiry | ||
20 | MB.01.06.05.20 | STEEL BARREL NIPPLE | Per Pump Qty: 1 | Generate Inquiry | ||
21 | MB.01.06.05.21 | GREASE NIPPLE 1/8" BSP | Per Pump Qty: 1 | Generate Inquiry | ||
22 | MB.01.06.05.22 | LIQUID THROWER | Per Pump Qty: 1 | Generate Inquiry | ||
23 | MB.01.06.05.23 | HEx BOLT 10x40 | Per Pump Qty: 8 | Generate Inquiry | ||
24 | MB.01.04.05.24 | WASHER M10 | Per Pump Qty: 10 | Generate Inquiry | ||
25 | MB.01.06.05.25 | SPRING WASHER M10 | Per Pump Qty: 10 | Generate Inquiry | ||
26 | MB.01.04.05.26 | HEx BOLT 10x30 | Per Pump Qty: 2 | Generate Inquiry | ||
27 | MB.01.06.05.27 | BEARING RING | Per Pump Qty: 1 | Generate Inquiry | ||
28 | MB.01.06.05.28 | L TYPE RING | Per Pump Qty: 1 | Generate Inquiry | ||
29 | MB.01.06.05.29 | TAPER BUSH A | Per Pump Qty: 1 | Generate Inquiry | ||
30 | MB.01.06.05.30 | GRUB SCREW 7/8" BSW | Per Pump Qty: 2 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|

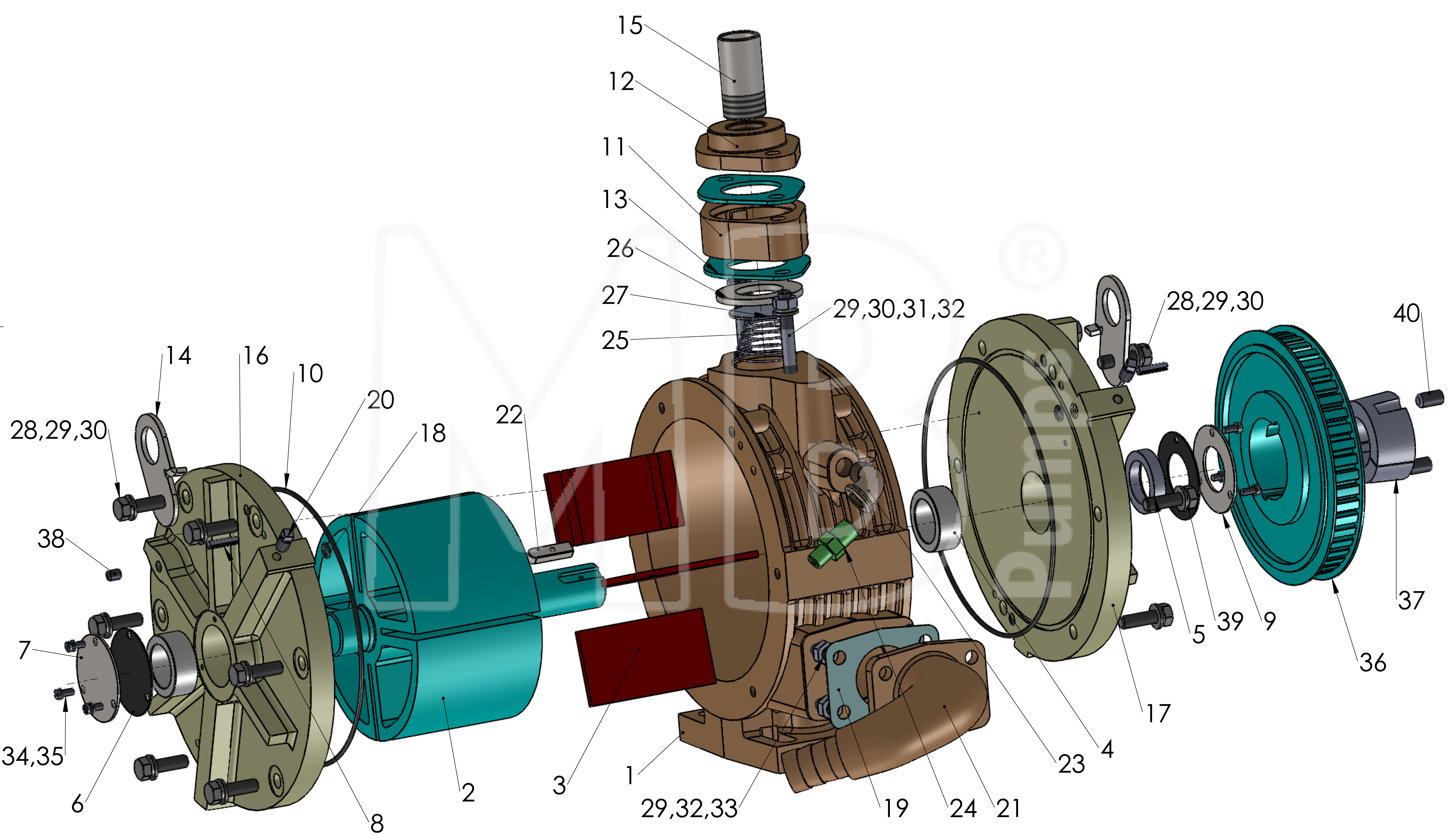

01 | MB.01.06.06.01 | STATOR (HOUSING) | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.06.06.02 | ROTOR U02 | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.06.03 | BLADE | Per Pump Qty: 4 | Generate Inquiry | ||
04 | MB.01.06.06.04 | BEARING NKI 35.20 | Per Pump Qty: 2 | Generate Inquiry | ||
05 | MB.01.06.06.05 | OIL SEAL 35.50.10 | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.06.06.06 | JOINT COVER PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.06.06.07 | BEARING COVER PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.06.06.08 | DOWEL PIN 6MM | Per Pump Qty: 4 | Generate Inquiry | ||
09 | MB.01.06.06.09 | OIL SEAL RETATING PLATE | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.06.06.10 | O RING 216 | Per Pump Qty: 2 | Generate Inquiry | ||
11 | MB.01.06.06.11 | CHEK VALVE | Per Pump Qty: 1 | Generate Inquiry | ||
12 | MB.01.06.06.12 | FLANGE | Per Pump Qty: 1 | Generate Inquiry | ||
13 | MB.01.06.06.13 | JOINT FLANGE | Per Pump Qty: 1 | Generate Inquiry | ||
14 | MB.01.06.06.14 | LIFTING EYE HOLE | Per Pump Qty: 2 | Generate Inquiry | ||
15 | MB.01.06.06.15 | PIPE ADAPTOR | Per Pump Qty: 1 | Generate Inquiry | ||
16 | MB.01.06.06.16 | NON DRIVE COVER | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.06.06.17 | DRIVE COVER | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.06.06.18 | O RING 12.2 | Per Pump Qty: 2 | Generate Inquiry | ||
19 | MB.01.06.06.19 | JOINT ADT+VP | Per Pump Qty: 1 | Generate Inquiry | ||
20 | MB.01.06.06.20 | PLUGE 0.125" BSP | Per Pump Qty: 2 | Generate Inquiry | ||
21 | MB.01.06.06.21 | FLANGE ANGLER | Per Pump Qty: 2 | Generate Inquiry | ||
22 | MB.01.06.06.22 | ROTOR KEY | Per Pump Qty: 1 | Generate Inquiry | ||
23 | MB.01.06.06.23 | 3/8" BSP M-F ELBOW | Per Pump Qty: 1 | Generate Inquiry | ||
24 | MB.01.06.06.24 | NIPPLE 3-8x1-4 BSP | Per Pump Qty: 1 | Generate Inquiry | ||
25 | MB.01.06.06.25 | VACUUM NRV SPRING | Per Pump Qty: 1 | Generate Inquiry | ||
26 | MB.01.06.06.26 | VACUUM NRV SEAT | Per Pump Qty: 1 | Generate Inquiry | ||
27 | MB.01.06.06.27 | VACUUM NRV DISC | Per Pump Qty: 1 | Generate Inquiry | ||
28 | MB.01.06.06.28 | HEx BOLT 10x35 | Per Pump Qty: 1 | Generate Inquiry | ||
29 | MB.01.06.06.29 | SPRING WASHER M10 | Per Pump Qty: 12 | Generate Inquiry | ||
30 | MB.01.06.06.30 | WASHER M10 | Per Pump Qty: 18 | Generate Inquiry | ||
31 | MB.01.06.06.31 | STUD 10x70 | Per Pump Qty: 14 | Generate Inquiry | ||
32 | MB.01.06.06.32 | NUT M10 | Per Pump Qty: 2 | Generate Inquiry | ||
33 | MB.01.06.06.33 | STUD 10x30 | Per Pump Qty: 6 | Generate Inquiry | ||
34 | MB.01.06.06.34 | SLOTTED CHEESE HEAD SCREW | Per Pump Qty: 4 | Generate Inquiry | ||
35 | MB.01.06.06.35 | SPRING WASHER M5 | Per Pump Qty: 6 | Generate Inquiry | ||
36 | MB.01.06.06.36 | TIMING PULLY | Per Pump Qty: 6 | Generate Inquiry | ||
37 | MB.01.06.06.37 | TAPER BUSH | Per Pump Qty: 1 | Generate Inquiry | ||
38 | MB.01.06.06.38 | GRUB SCREW 1/8" BSP x 10 | Per Pump Qty: 6 | Generate Inquiry | ||
39 | MB.01.06.06.39 | OIL SEAL REATING PLATE JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
40 | MB.01.06.06.40 | GRUB SCREW 7/16" BSW | Per Pump Qty: 2 | Generate Inquiry | ||
41 | MB.01.08.06.41 | TIMING BELT | Per Pump Qty: 1 | Generate Inquiry |

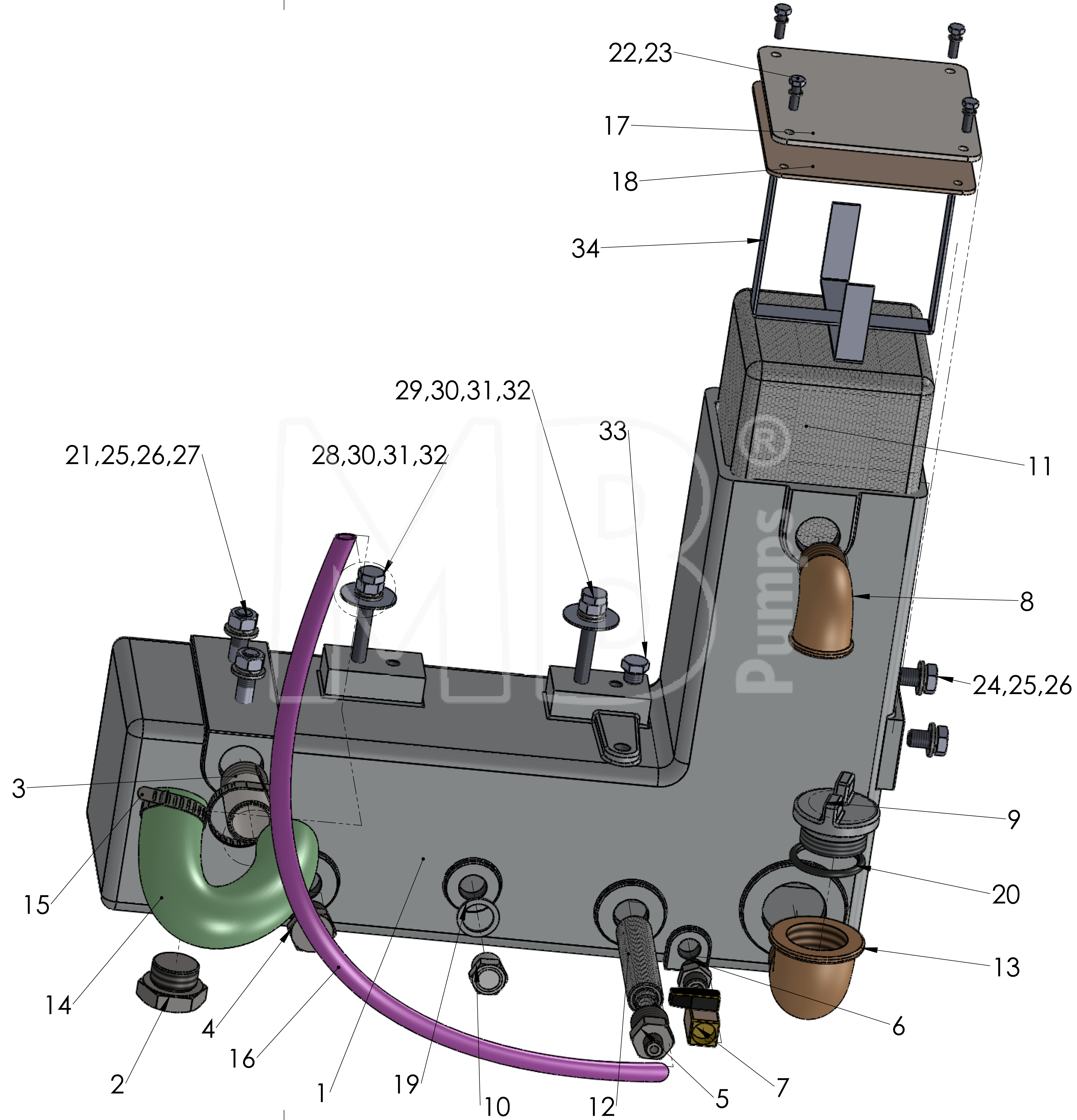

All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|
01 | MB.01.04.07.01 | COALESCER TANK | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.04.07.02 | B.S.P. PLUG 1" | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.06.07.03 | PIPE ADAPTER | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.04.07.04 | B.S.P. PLUG 3/4" | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.04.07.05 | NIPPLE 3/4" x 1/4"BSP | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.04.07.06 | NIPPLE 3/8" x 3/8" BSP | Per Pump Qty: 1 | Generate Inquiry | ||
07 | MB.01.04.07.07 | COCK | Per Pump Qty: 1 | Generate Inquiry | ||
08 | MB.01.04.07.08 | ELBOW 1x1 BSP MF | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.04.07.09 | OIL FILLER CAP | Per Pump Qty: 1 | Generate Inquiry | ||
10 | MB.01.04.07.10 | B.S.P. PLUG 1/2" | Per Pump Qty: 1 | Generate Inquiry | ||
11 | MB.01.04.07.11 | COALSCER TANK FILTER | Per Pump Qty: 1 | Generate Inquiry | ||
12 | MB.01.04.07.12 | OIL FILTER | Per Pump Qty: 1 | Generate Inquiry | ||
13 | MB.01.04.07.13 | ELBOW 1.5x1.5 BSP MF | Per Pump Qty: 1 | Generate Inquiry | ||
14 | MB.01.06.07.14 | HOSE PIPE | Per Pump Qty: 1 | Generate Inquiry | ||
15 | MB.01.04.07.15 | SUPER CLAMP | Per Pump Qty: 2 | Generate Inquiry | ||
16 | MB.01.04.07.16 | OIL FEED HOSE | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.04.07.17 | COALESCER TANK COVER | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.04.07.18 | COALESCER TANK COVER JOINT | Per Pump Qty: 1 | Generate Inquiry | ||
19 | MB.01.04.07.19 | WASHER 1-2 IN BSP | Per Pump Qty: 1 | Generate Inquiry | ||
20 | MB.01.04.07.20 | O RING OIL FILLER CAP | Per Pump Qty: 1 | Generate Inquiry | ||
21 | MB.01.04.07.21 | STUD 12x50 | Per Pump Qty: 2 | Generate Inquiry | ||
22 | MB.01.04.07.22 | HEx BOLT M6x20 | Per Pump Qty: 2 | Generate Inquiry | ||
23 | MB.01.04.07.23 | SPRING WASHER M6 | Per Pump Qty: 4 | Generate Inquiry | ||
24 | MB.01.04.07.24 | HEx BOLT M12x20 | Per Pump Qty: 4 | Generate Inquiry | ||
25 | MB.01.04.07.25 | SPRING WASHER M12 | Per Pump Qty: 4 | Generate Inquiry | ||
26 | MB.01.04.07.26 | WASHER M12 | Per Pump Qty: 4 | Generate Inquiry | ||
27 | MB.01.04.07.27 | NUT M12 | Per Pump Qty: 2 | Generate Inquiry | ||
28 | MB.01.04.07.28 | HEx BOLTM10x75 | Per Pump Qty: 2 | Generate Inquiry | ||
29 | MB.01.04.07.29 | NUT M10 | Per Pump Qty: 2 | Generate Inquiry | ||
30 | MB.01.04.07.30 | SPRING WASHER M10 | Per Pump Qty: 2 | Generate Inquiry | ||
31 | MB.01.04.07.31 | WASHER M10 | Per Pump Qty: 2 | Generate Inquiry | ||
32 | MB.01.04.07.32 | ALINMENT SHIM1.5 MM | Per Pump Qty: 9 | Generate Inquiry | ||
33 | MB.01.04.07.33 | B.S.P. PLUG 1/4" | Per Pump Qty: 1 | Generate Inquiry | ||
34 | MB.01.04.07.34 | FILTER RETAINER | Per Pump Qty: 1 | Generate Inquiry |
All | S.No. | Image | Code | Name | Qty | Action |
---|---|---|---|---|---|---|
01 | MB.01.06.08.01 | CHASSIS SIDE A | Per Pump Qty: 1 | Generate Inquiry | ||
02 | MB.01.04.08.02 | CHASSIS SIDE B | Per Pump Qty: 1 | Generate Inquiry | ||
03 | MB.01.04.08.03 | CHASSIS 1 | Per Pump Qty: 1 | Generate Inquiry | ||
04 | MB.01.04.08.04 | CHASSIS 2 | Per Pump Qty: 1 | Generate Inquiry | ||
05 | MB.01.04.08.05 | CHASSIS 3 | Per Pump Qty: 1 | Generate Inquiry | ||
06 | MB.01.04.08.06 | ANGLE 8x75x75 | Per Pump Qty: 2 | Generate Inquiry | ||
07 | MB.01.06.08.07 | M.S.BLOCK 190x100x90 | Per Pump Qty: 2 | Generate Inquiry | ||
08 | MB.01.04.08.08 | ANGLE 6x60x60 | Per Pump Qty: 1 | Generate Inquiry | ||
09 | MB.01.04.08.09 | CHASSIS CAP | Per Pump Qty: 4 | Generate Inquiry | ||
10 | MB.01.04.08.10 | STRIP 1 | Per Pump Qty: 2 | Generate Inquiry | ||
11 | MB.01.04.08.11 | STRIP 2 | Per Pump Qty: 2 | Generate Inquiry | ||
12 | MB.01.04.08.12 | M.S.BLOCK 150x110x60 | Per Pump Qty: 2 | Generate Inquiry | ||
13 | MB.01.04.08.13 | M.S.BLOCK 108x95x60 | Per Pump Qty: 2 | Generate Inquiry | ||
14 | MB.01.04.08.14 | WHEEL | Per Pump Qty: 4 | Generate Inquiry | ||
15 | MB.01.04.08.15 | LIFTER | Per Pump Qty: 1 | Generate Inquiry | ||
16 | MB.01.04.08.16 | TRANSFER | Per Pump Qty: 1 | Generate Inquiry | ||
17 | MB.01.04.08.17 | BATTERY BOX | Per Pump Qty: 1 | Generate Inquiry | ||
18 | MB.01.04.08.18 | THREAD ROD | Per Pump Qty: 2 | Generate Inquiry | ||
19 | MB.01.04.08.19 | SUPPORT BRACKET | Per Pump Qty: 1 | Generate Inquiry | ||
20 | MB.01.04.08.20 | SQUARE TUBE | Per Pump Qty: 1 | Generate Inquiry | ||
21 | MB.01.04.08.21 | BEARING SLEEVE | Per Pump Qty: 4 | Generate Inquiry | ||
22 | MB.01.04.08.22 | BEARING 6206 | Per Pump Qty: 8 | Generate Inquiry | ||
23 | MB.01.04.08.23 | LOCK NUT | Per Pump Qty: 4 | Generate Inquiry | ||
24 | MB.01.04.08.24 | WHEEL END CAP | Per Pump Qty: 4 | Generate Inquiry | ||
25 | MB.01.04.08.25 | HANDLE GRIP | Per Pump Qty: 1 | Generate Inquiry | ||
26 | MB.01.04.08.26 | AXLE BOX | Per Pump Qty: 2 | Generate Inquiry | ||
27 | MB.01.04.08.27 | BOTTOM SQUARE TUBE | Per Pump Qty: 1 | Generate Inquiry | ||
28 | MB.01.04.08.28 | DRAIN PLUG | Per Pump Qty: 2 | Generate Inquiry | ||
29 | MB.01.04.08.29 | MAIN HANDLE PIPE | Per Pump Qty: 1 | Generate Inquiry | ||
30 | MB.01.04.08.30 | SUPPORT BRACKET 2 | Per Pump Qty: 1 | Generate Inquiry | ||
31 | MB.01.04.08.31 | HEX BOLT M20 | Per Pump Qty: 2 | Generate Inquiry | ||
32 | MB.01.04.08.32 | NUT M20 | Per Pump Qty: 2 | Generate Inquiry | ||
33 | MB.01.04.08.33 | WASHER | Per Pump Qty: 2 | Generate Inquiry | ||
34 | MB.01.04.08.34 | OIL FILLER CAP SLEEVE | Per Pump Qty: 1 | Generate Inquiry | ||
35 | MB.01.04.08.35 | OIL FILLER CAP | Per Pump Qty: 1 | Generate Inquiry | ||
36 | MB.01.04.08.36 | M.S. PLATE 275x113x20 | Per Pump Qty: 1 | Generate Inquiry | ||
37 | MB.01.04.08.37 | FUEL PIPE | Per Pump Qty: 1 | Generate Inquiry | ||
38 | MB.01.04.08.38 | FUEL PIPE RETURN | Per Pump Qty: 1 | Generate Inquiry | ||
39 | MB.01.04.08.39 | STUD M12x40 | Per Pump Qty: 4 | Generate Inquiry |
