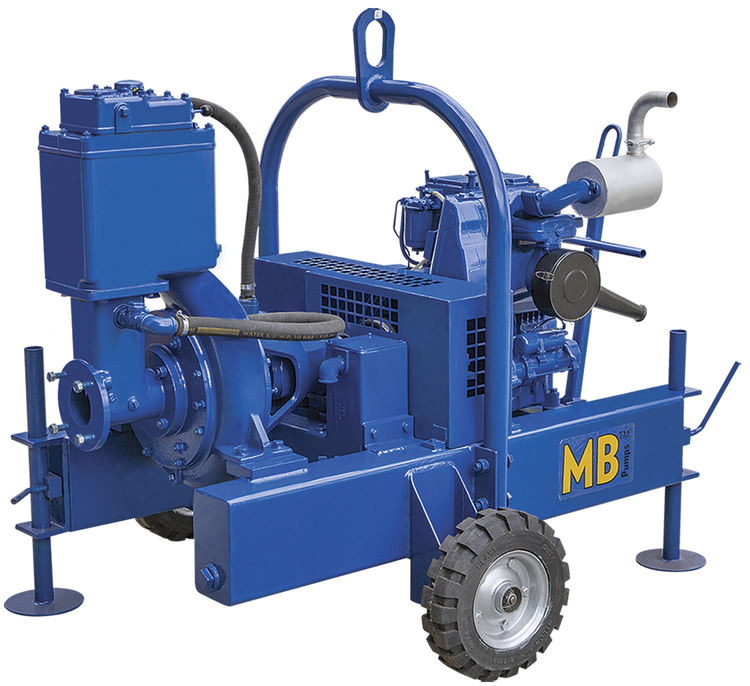

A Series 4" 160 m3/h

A Series 4" 160 m3/h
Application:
Construction industry, Industries, Communities Delivery of ground water and Dewatering.
Operation:
Water and air pump, driven by Diesel engine, air seperation chamber will automatically separate air from suction line and discharge only water.
Design:
Mounted on tank frame chassis (4 wheeled), movable at site (4 km/h)
Open Impeller, wear plates material:
Bronze, Vacuum producer pump with alluminium oil lubrication tank.
Pipe Connections:
4" Table D Suction and 4" Table D Discharge, Quick Couplings optional M, B, E & L Type
Fuel Tank:
Capacity: 150 !tr. 24 hour Cleaning and flushing facilities
Engine :
HA 394 Kirloskar engine, air cooled, self started.
Shaft Seal:
Packing carrier system with gland rope for easy maintenance on site. Spring loaded no adjustment required with S.S. wear ring.
A-Series Pumps Technical Specifiction
  4" 6" 8"
Max Flow 45 L/S per sec (162m3/h) 90 L/S per sec(324m3/h) 138 L/S per sec (496m3/h)
Max Discharge Head 31 mtr 42 mtr 42 mtr
Max Solid 44mm 55 mm 50 mm
Suction Lift 9 mtr 9 mtr 9 mtr
Fuel tank 150 Itr 150 Itr 150 Itr
RPM 1500- 1800 1500 to 2300 1500 to 2300
KW-(HP) 14-16.9(19-23) 23.6-28(32-38) 31.6-38.2(43-52)
Priming Tank Alluminimum Alluminimum Alluminimum
Vaccum System 25 CFM A-Type 60 CFM A-Type 60 CFM A-Type
Engine- HA294 KRISLOSKER HA394 KRISLOSKER HA494 KRISLOSKER
Weight without engine 630 kg 835kg 920 kg
Weight with engine 860 kg 1070 kg 1360 kg
Vol- LxWx H (mm) 1800 x 1270 x 1230 2080 x 1270 x 1640 2080 x 1270 x 1640
